by **Crunge98** on Sat Oct 16, 2010 11:20 pm

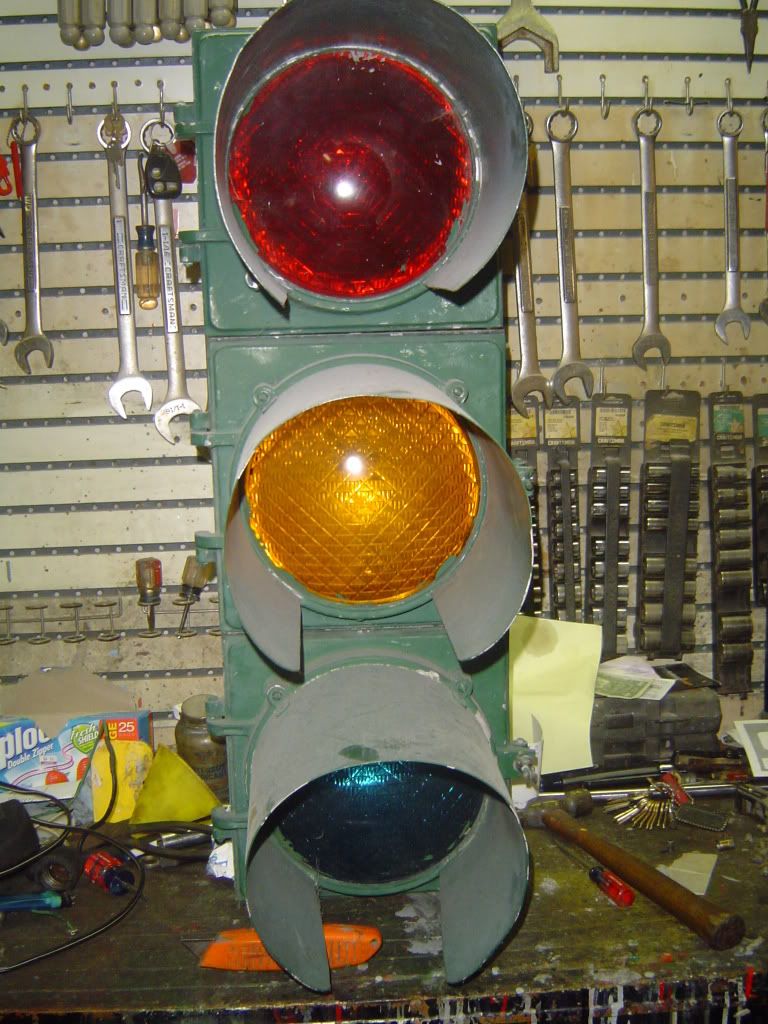

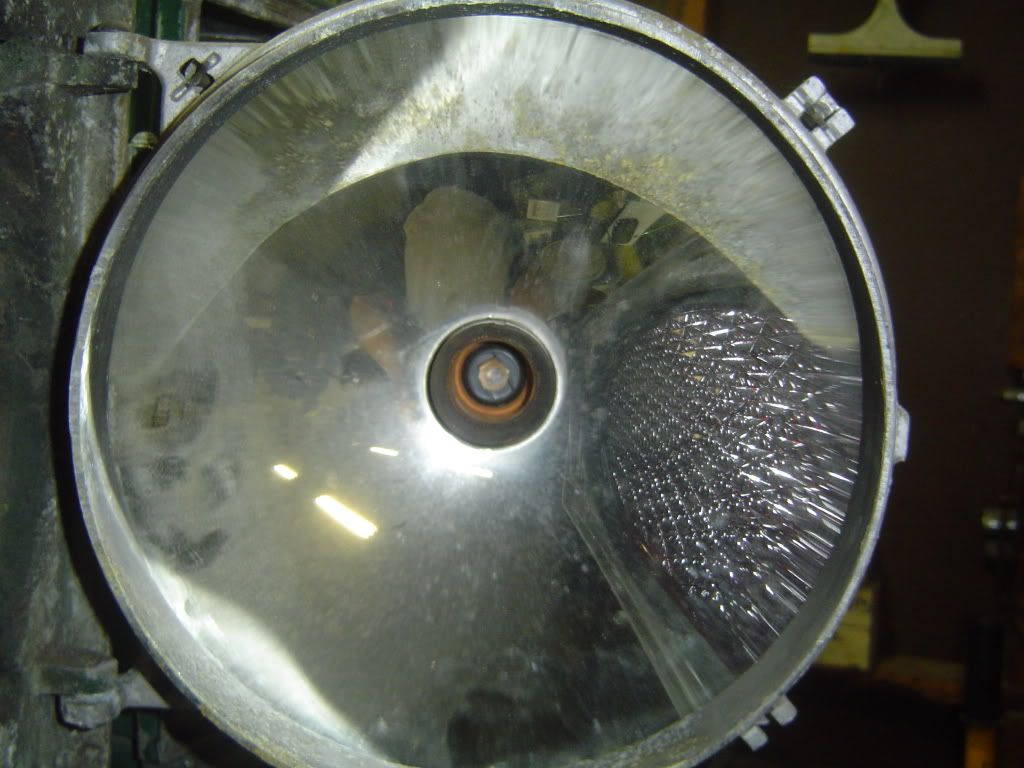

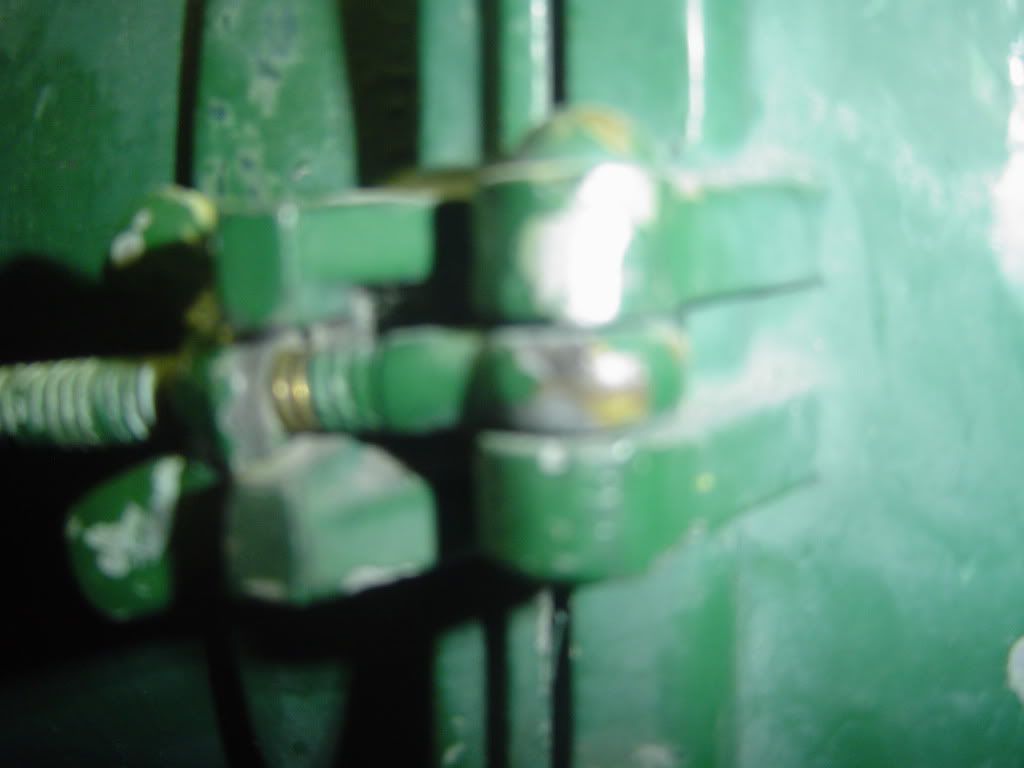

This is a Marbelite Flat top single face. This is the first version of it. Marb took over Horni and used there design. the only thing that changed was the logo on the back that said simply Marbelite. All the lights I know that are out there like this one have the Kopp 66 lenses in it. The reflectors are mounted to the doors. The bodies are bolted together with brass bolts.

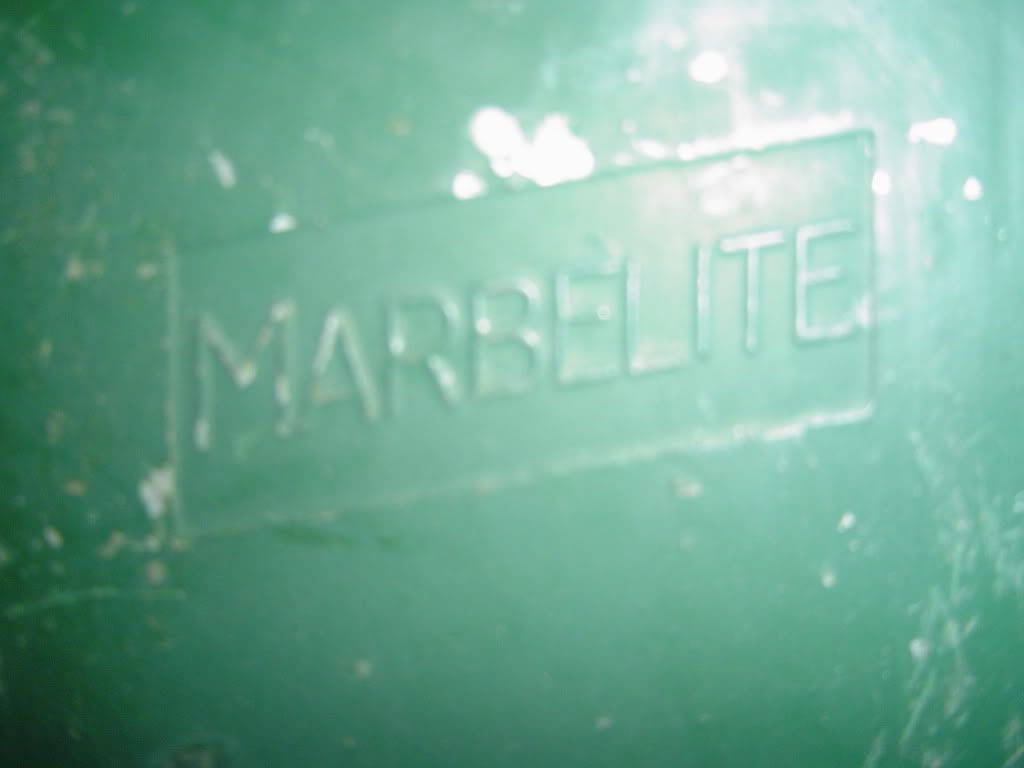

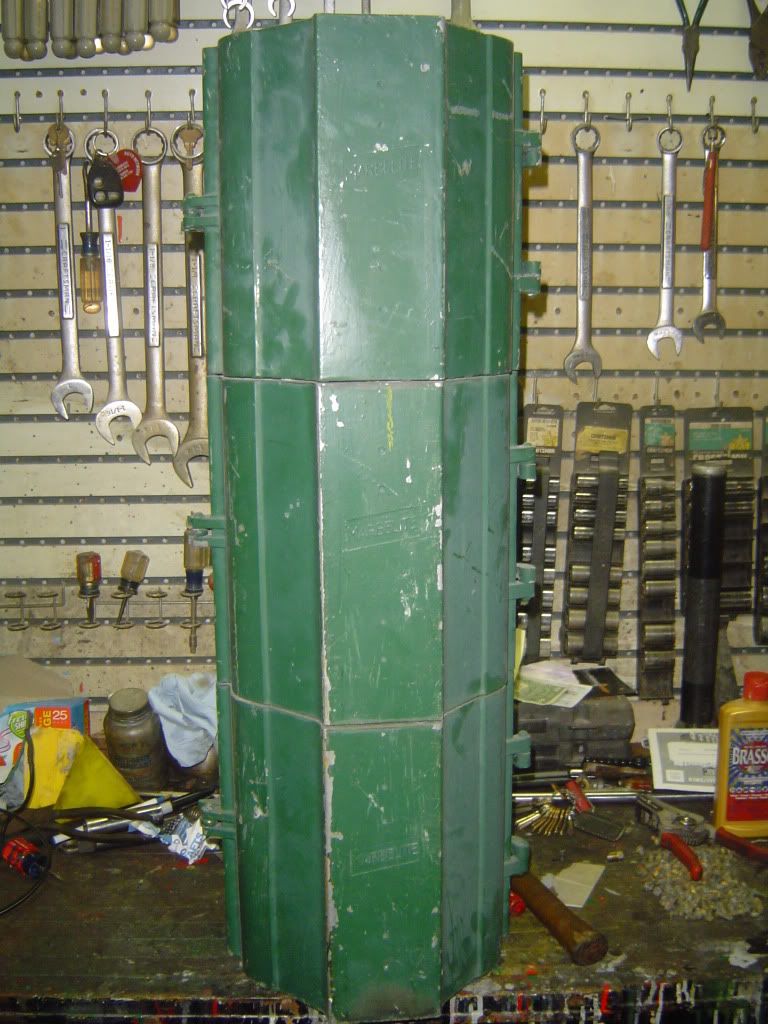

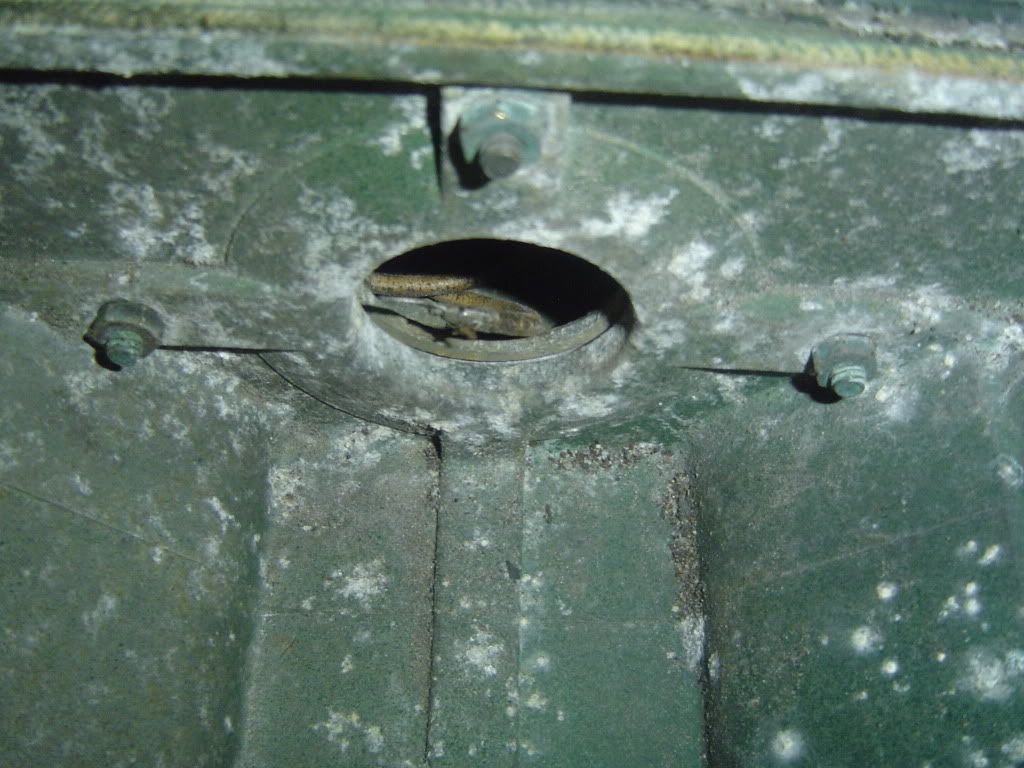

notice the two dimples above and below the logo on each section

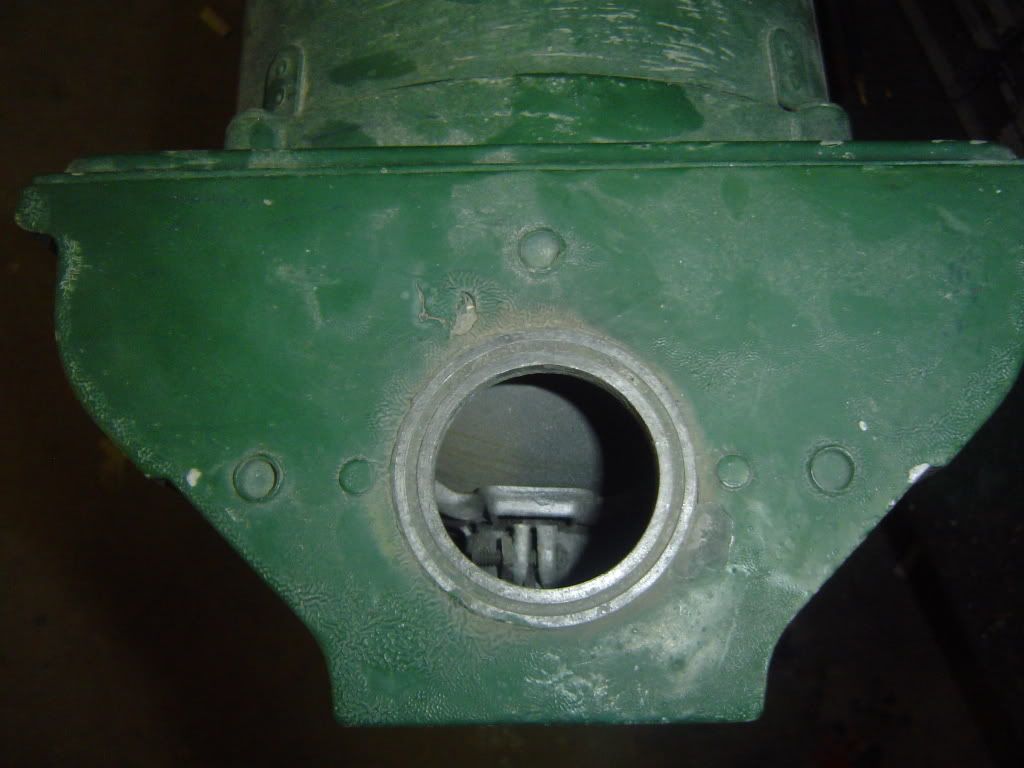

Top

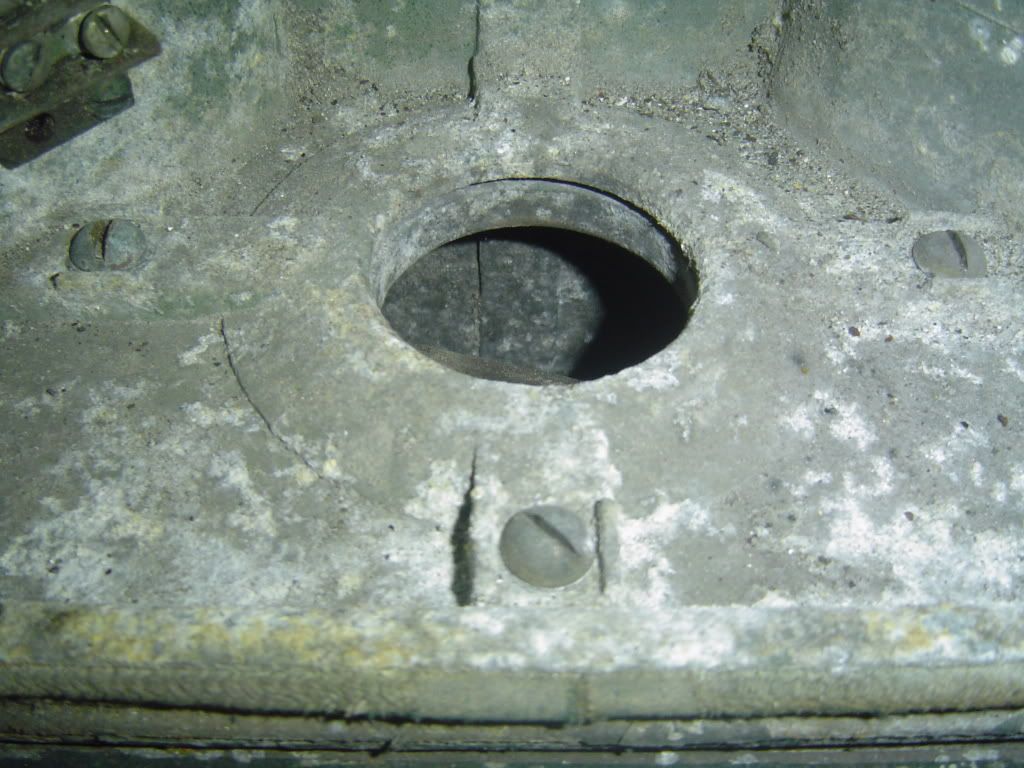

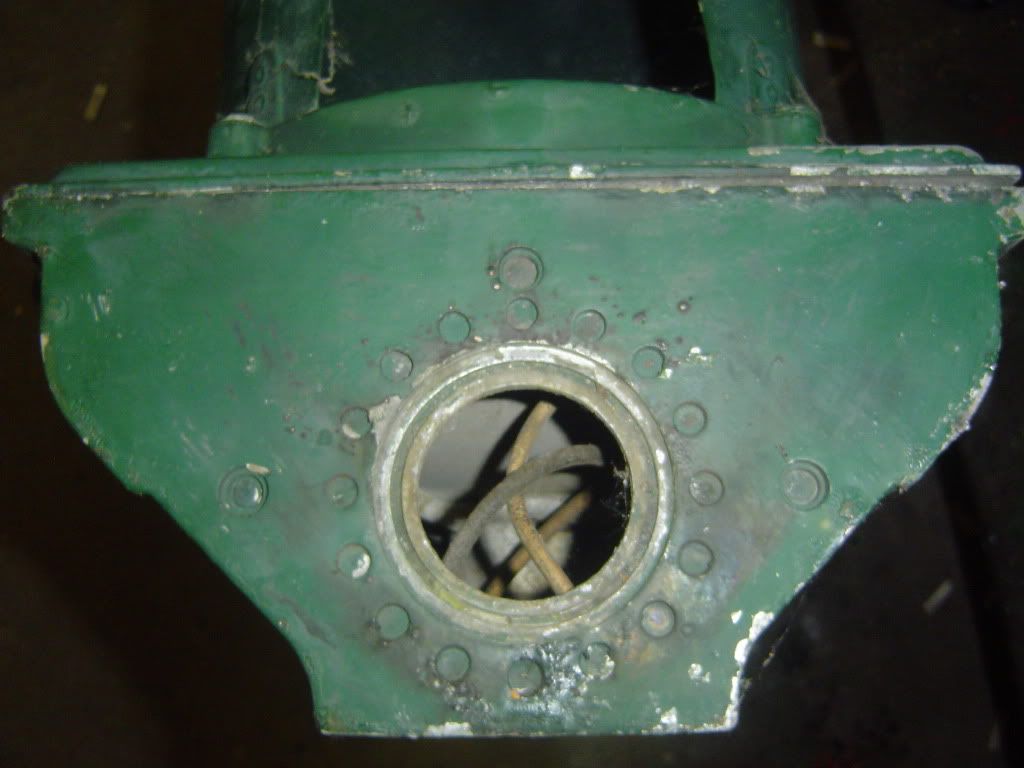

Bottom

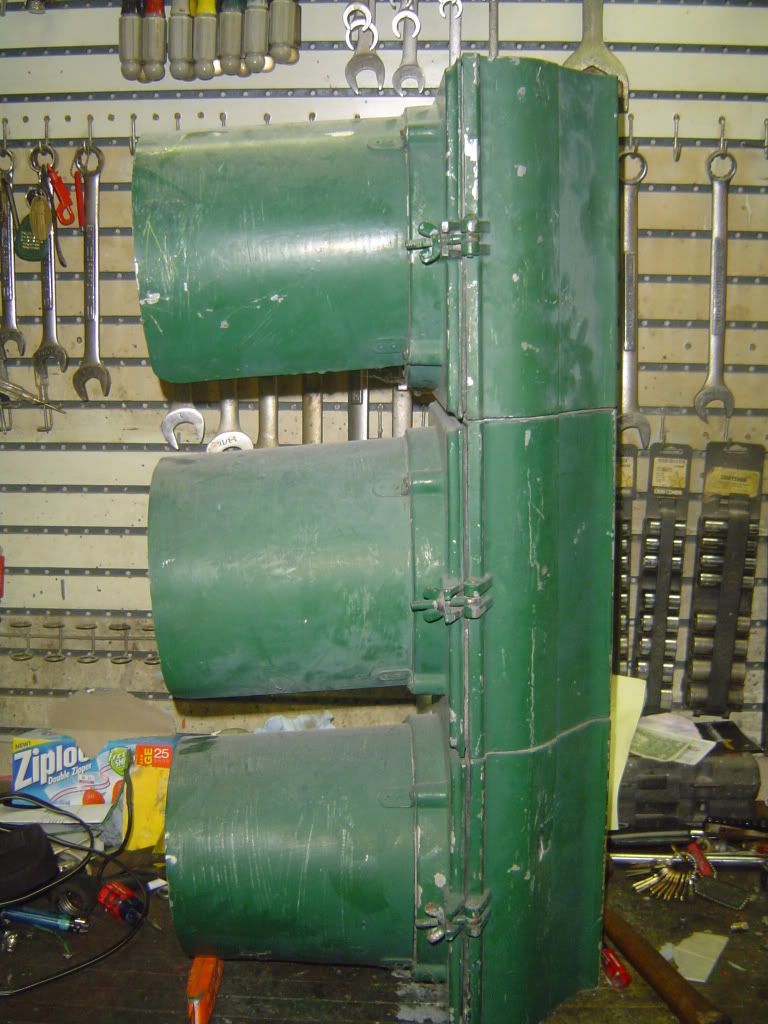

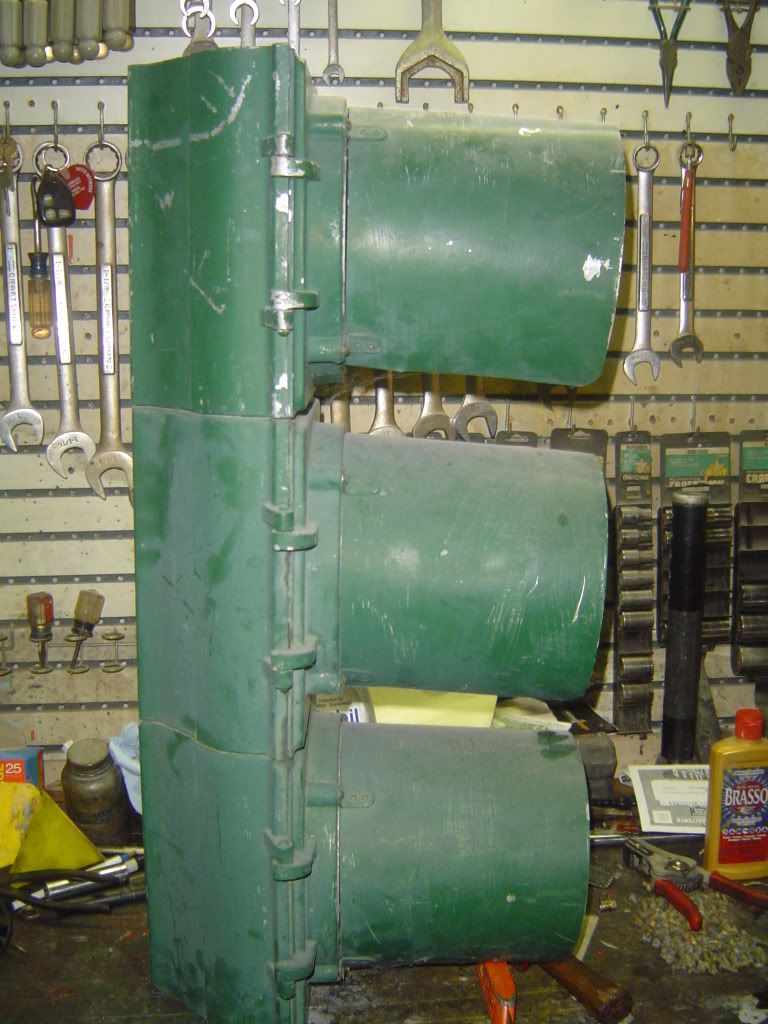

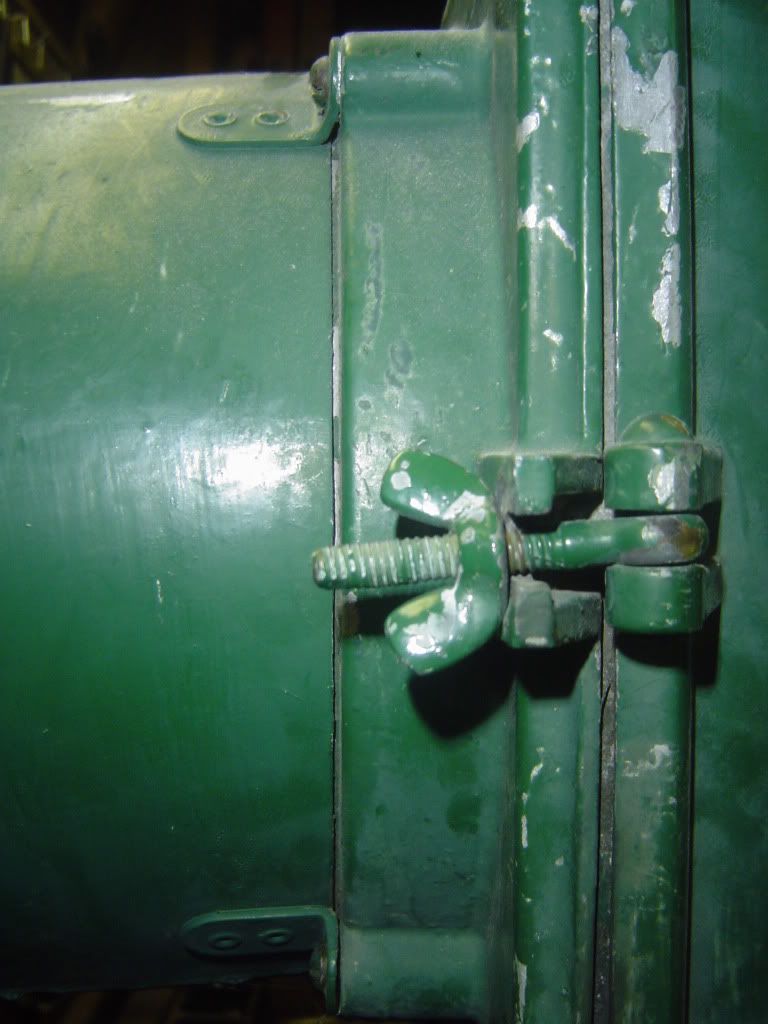

Notice the door stick out farther around the lense because the reflector is mounted to the door

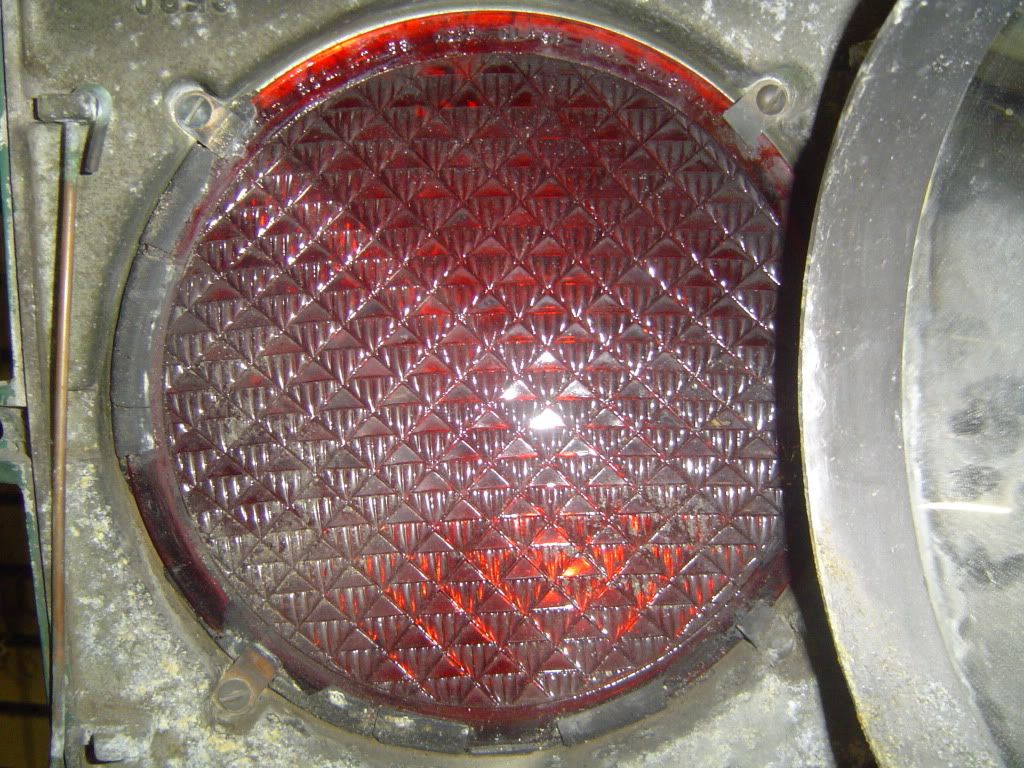

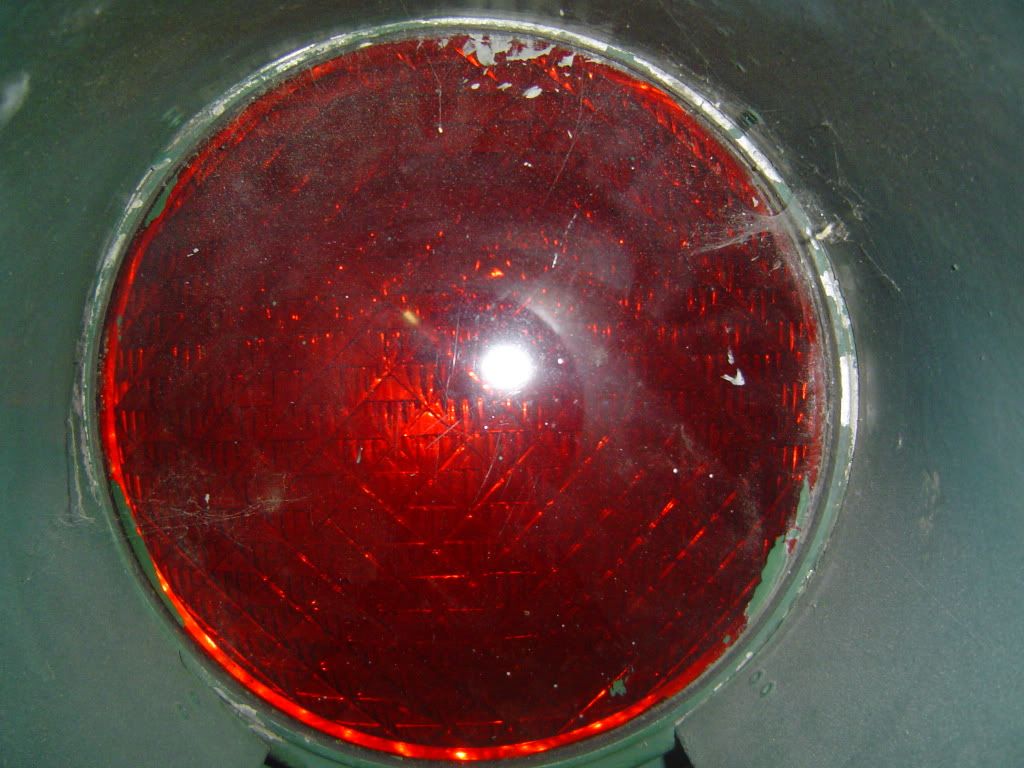

Kopp 66

by **EdT.** on Sat Oct 16, 2010 11:48 pm

Great pics and documentation. :thumbsup:

by **Crunge98** on Sat Oct 16, 2010 11:56 pm

Thanks been doing a bunch on Marbs lately

by **LarryC39** on Sat Oct 16, 2010 11:56 pm

Nice light where'd you find one like that? I'd been looking for ages :grin:

by **Crunge98** on Sun Oct 17, 2010 12:00 am

Some guy in Michigan just had to have one of my 12-8-8 type M's. So we traded :thumbsup:

by **SirMarbelot** on Mon Oct 18, 2010 7:59 am

Crunge98 wrote:Some guy in Michigan just had to have one of my 12-8-8 type M's. So we traded

"Ohhhh, Sweet Domination!", as Plankton might say...

by **SirMarbelot** on Mon Oct 18, 2010 8:08 am

I strongly suspect that a couple of these may still be serving at the corner of Washington & Watchung in Chatham NJ. I took a close look at these years ago, before I knew the subtleties of this model. One thing I recall were the dimples surrounding the bottom entrance hole. EDIT: OK, I see from your 2nd gen Marb that those dimples survived for a while after the change in reflector design.

http://maps.google.com/maps?oe=UTF-8&gfns=1&q=chatham,+nj&um=1&ie=UTF-8&hq=&hnear=Chatham,+NJ&gl=us&ei=CkW8TLvuNcWqlAex7ODGDA&sa=X&oi=geocode_result&ct=title&resnum=1&ved=0CBwQ8gEwAA

There's also an adjustable 4-way hanging in the Morris Canal Ale house in Boonton, NJ that may be of this type. I asked once about it, but didn't get very far.

by **MN-20** on Mon Oct 18, 2010 12:57 pm

SirMarbelot wrote:There's also an adjustable 4-way hanging in the Morris Canal Ale house in Boonton, NJ that may be of this type. I asked once about it, but didn't get very far.

Yeah, I tried for one, too, in Rye, back in 2004, no luck.. :cray:

.

Jesse

by **SirMarbelot** on Fri Oct 22, 2010 10:27 am

Is there any Cast ID number in the 1st generation flat top?

This breakdown would be good to have on the Marbelite SignalWiki.

by **Buttoncopy** on Fri Oct 22, 2010 1:46 pm

Nice signal Jay :good:

Thanks for the Pics.
