by **Easy** on Sun May 05, 2013 1:40 pm

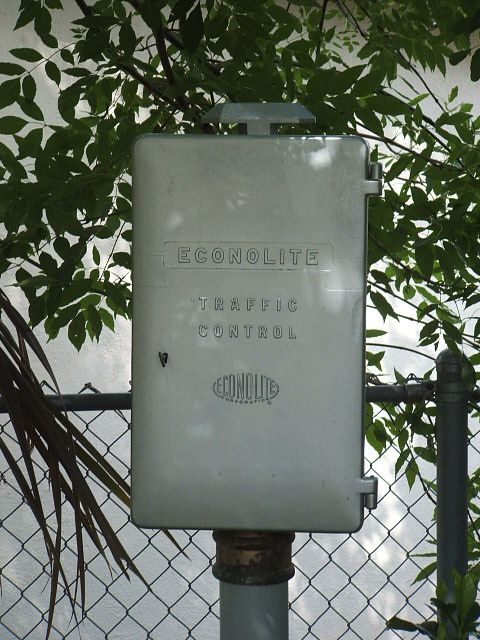

I hate to switch these out, but I have had no luck finding the controller for the GE cabinet so I decided to switch it out with the Econolite. The good thing about it is that the Econolite has the flashing don't walk, and since it is going to be running an Econolite Wait/Walk neon ped, I needed the ped function that the GE wouldn't have. I still have to paint the Econolite the same color as the GE to blend in with it's surroundings. :Wink2:

by **steven1981** on Sun May 05, 2013 1:52 pm

Nice set-up.

It's interesting to know that your type F could perform the flashing "DONT WALK" clearance, since, from what I understand, it was not capable to perform that function. I guess unless it was modified, then that was possible.

Will you post a video of it? I'd love to see that function.

by **Easy** on Sun May 05, 2013 1:55 pm

steven1981 wrote:Nice set-up.

It's interesting to know that your type F could perform the flashing "DONT WALK" clearance, since, from what I understand, it was not capable to perform that function. I guess unless it was modified, then that was possible.

Will you post a video of it? I'd love to see that function.

I'll post a video of it when I finish wiring it up..... which shouldn't take more than a few months! :lol:

by **gwlreno** on Sun May 05, 2013 4:05 pm

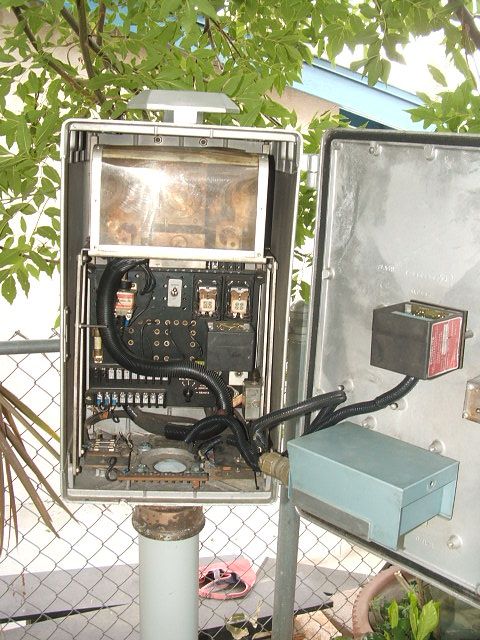

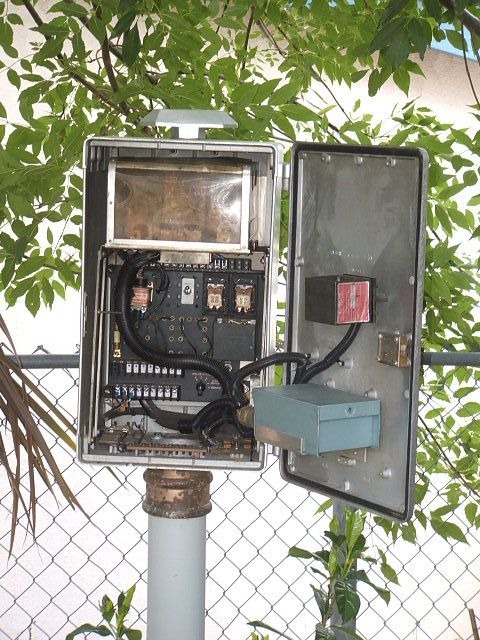

Nice setup Easy. What are the two boxes on the door? Are they what makes the flashing DW?

by **Easy** on Sun May 05, 2013 4:36 pm

gwlreno wrote:Nice setup Easy. What are the two boxes on the door? Are they what makes the flashing DW?

Gordon, I think that the top one is the flasher, but your guess is as good as mine. :blink:

The big one is a mystery to me.....the controller worked fine when I got it so I didn't bother tinkering with it.

Can any of you " controller " guys tell me what the boxes are?

by **vaughn** on Sun May 05, 2013 5:47 pm

I have to agree, nice setup :yes:

looking good

by **RunsWithCrouse-Hinds** on Sun May 05, 2013 6:13 pm

Easy wrote:
gwlreno wrote:Nice setup Easy. What are the two boxes on the door? Are they what makes the flashing DW?

Gordon, I think that the top one is the flasher, but your guess is as good as mine. The big one is a mystery to me.....the controller worked fine when I got it so I didn't bother tinkering with it.

Can any of you " controller " guys tell me what the boxes are?

The one on the top is a flasher, probably for the flashing DW, the bottom one...can you post pics of the inside?

by **JVC8230** on Sun May 05, 2013 8:28 pm

Very nice!!! :thumbsup:

by **eagleyes** on Mon May 06, 2013 4:35 pm

Always like the em controller action! :thumbsup:

Holy Smoke! Is 250 the number for Crusty Old Salt? Wow! :2Cool:

by **signalfan** on Sun May 12, 2013 7:34 am

Looks like an early version of a conflict monitor (monitors greens only) and a mercury switch (on upper left side), that gets tripped if there is a conflict (usually broken cam). I have an old eagle with a conflict monitor box similar to this. It's rare to see a conflict monitor on an electromechanical, but it did happen on some of the ones that lasted longer and the municipality wanted that extra level of liability protection.
